GEALAN PROFILE SYSTEMS

Profile systems for different project needs

As a GEALAN Authorized Window and Door Manufacturer, Art Yapı produces finished windows, sliding systems and entrance doors in Türkiye. From standard residential work to high-performance projects, the system, glazing and hardware are defined against the approved element schedule.

Art Yapı is a GEALAN Authorized Window and Door Manufacturer. Technical values shown are GEALAN profile-system catalogue references; final whole-window or door Uw, security class, glazing package and other performance depend on element dimensions and must be verified for the project configuration.

Window Systems

GEALAN

S 9000

82.5 mm

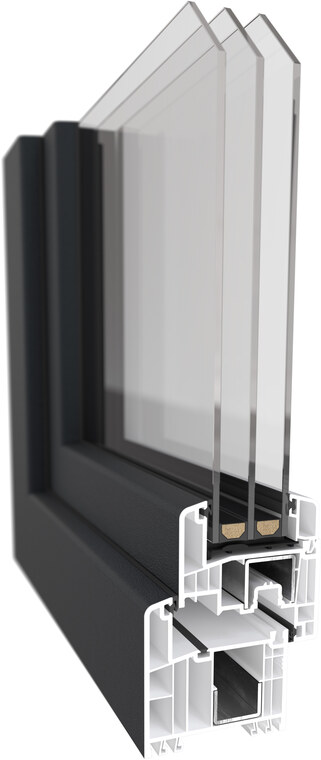

SECTION

S 9000

GEALAN · S 9000

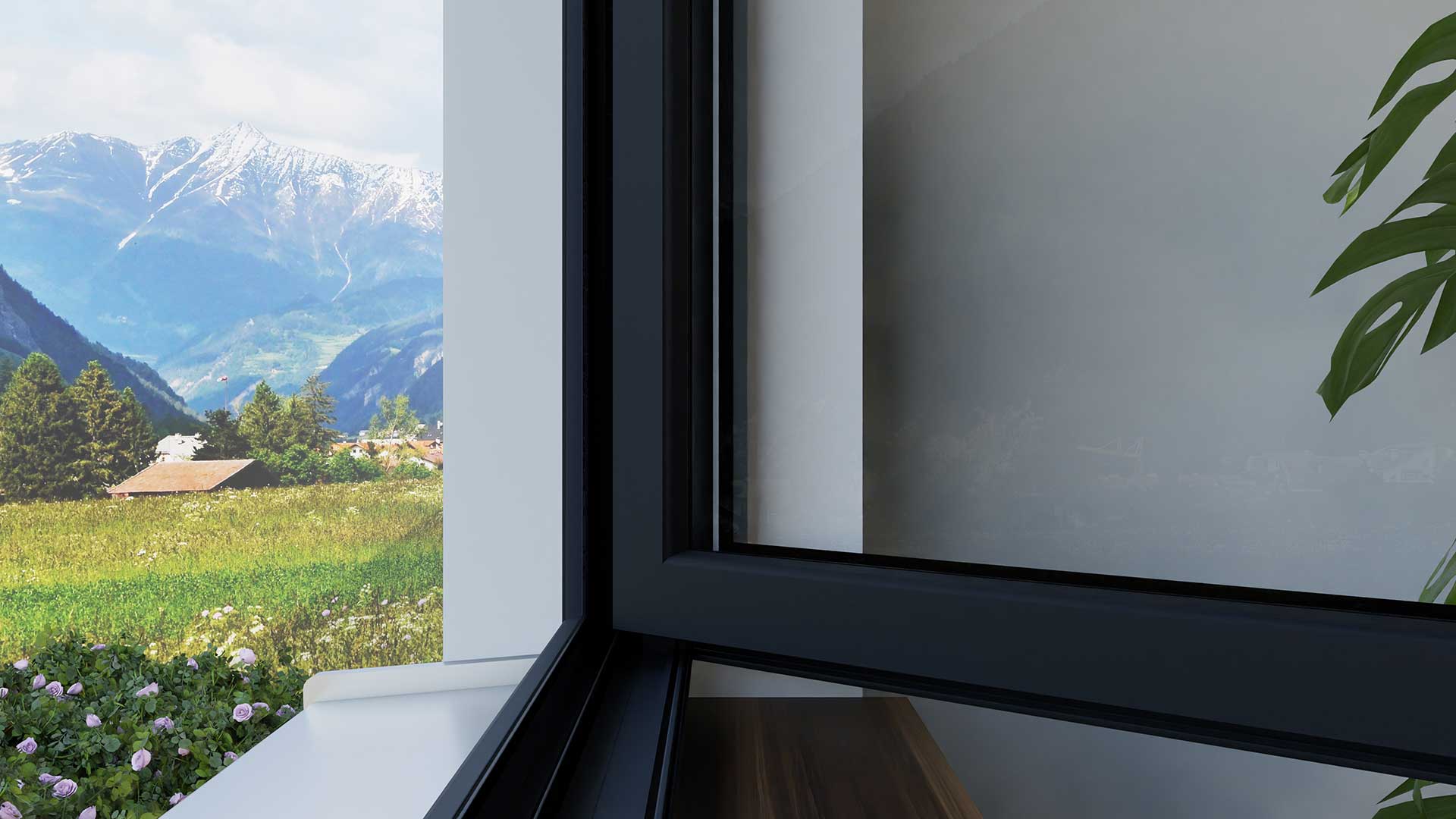

GEALAN S 9000

82.5 mm · 6 chambers · centre seal · flagship

GEALAN's versatile 82.5 mm combination platform: a 6-chamber body with a centre seal (MD) or rebate seal (AD). Catalogue references include Uf down to 0.89 for MD and 0.97 W/m²K for AD, with glazing up to 52 mm, or 54 mm using STV®. Colour, glazing, hardware and performance targets are verified together for each project.

Build depth: 82.5 mm
Chambers: 6
Uf value: MD 0.89 / AD 0.97 W/m²K
Max. glass: 52 mm / 54 mm STV®
Application: High-performance residential · renovation

Brochure · FR (PDF)Official GEALAN product page ↗

GEALAN

LINEAR

74 mm

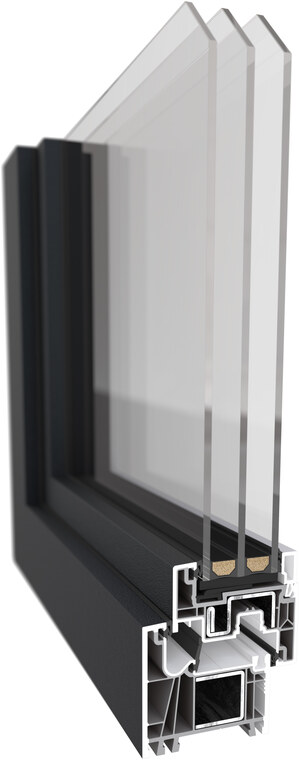

SECTION

LINEAR

GEALAN · LINEAR

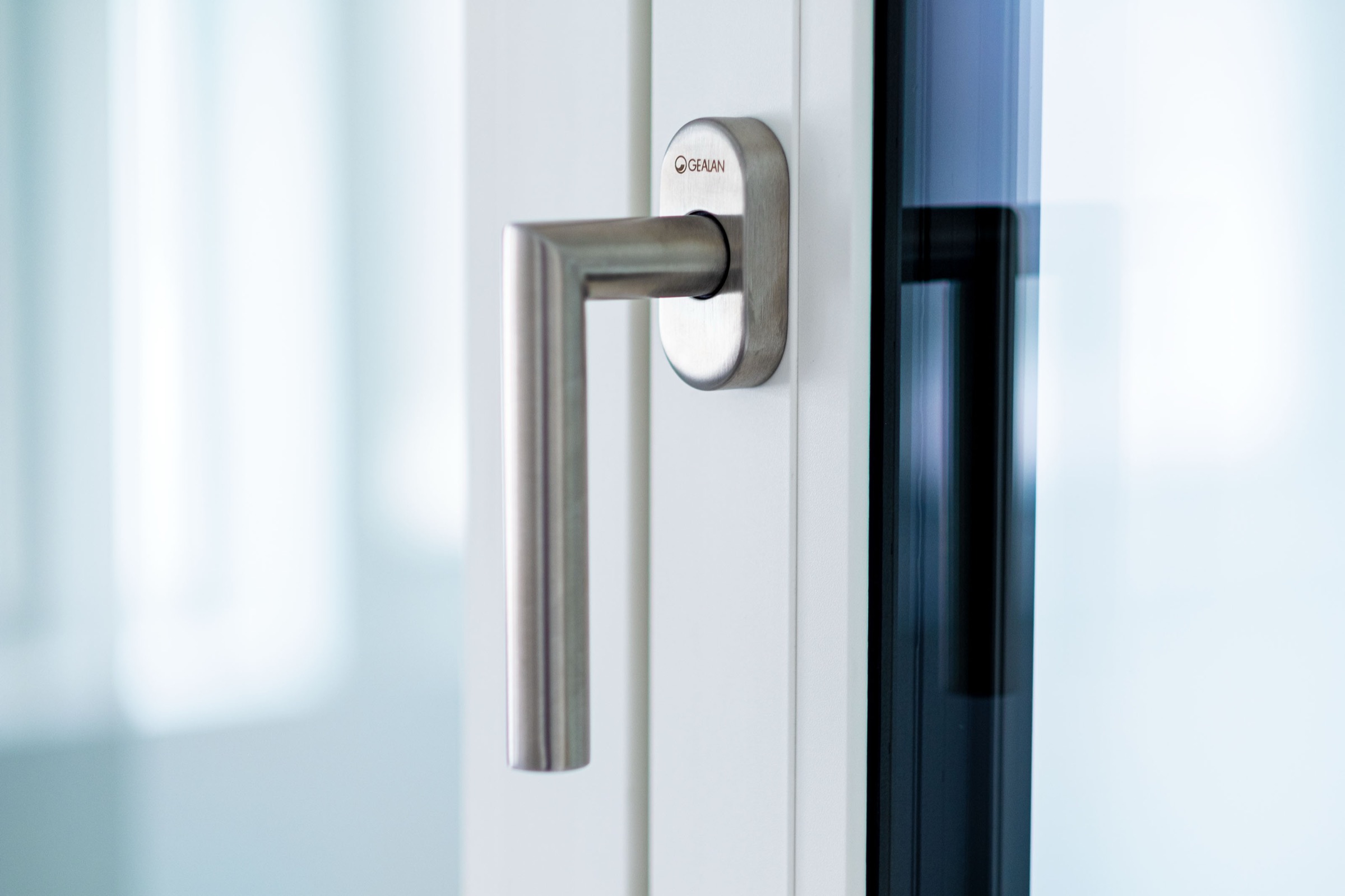

GEALAN-LINEAR

74 mm · flush façade · new build

Clear, angular and timeless. LINEAR combines a clean design language with narrow visible profile faces in the 74 mm class. Rebate or centre seal options are available; catalogue references include Uf down to 1.0 W/m²K and glazing up to 50 mm with STV®. It is a balanced choice for new-build and renovation projects.

Build depth: 74 mm
Uf value: 1.0 W/m²K
Max. glass: 48 mm / 50 mm STV®
Application: New build · flush façade

Brochure · EN (PDF)Official GEALAN product page ↗

GEALAN

S 8000

74 mm

S 8000

GEALAN · S 8000

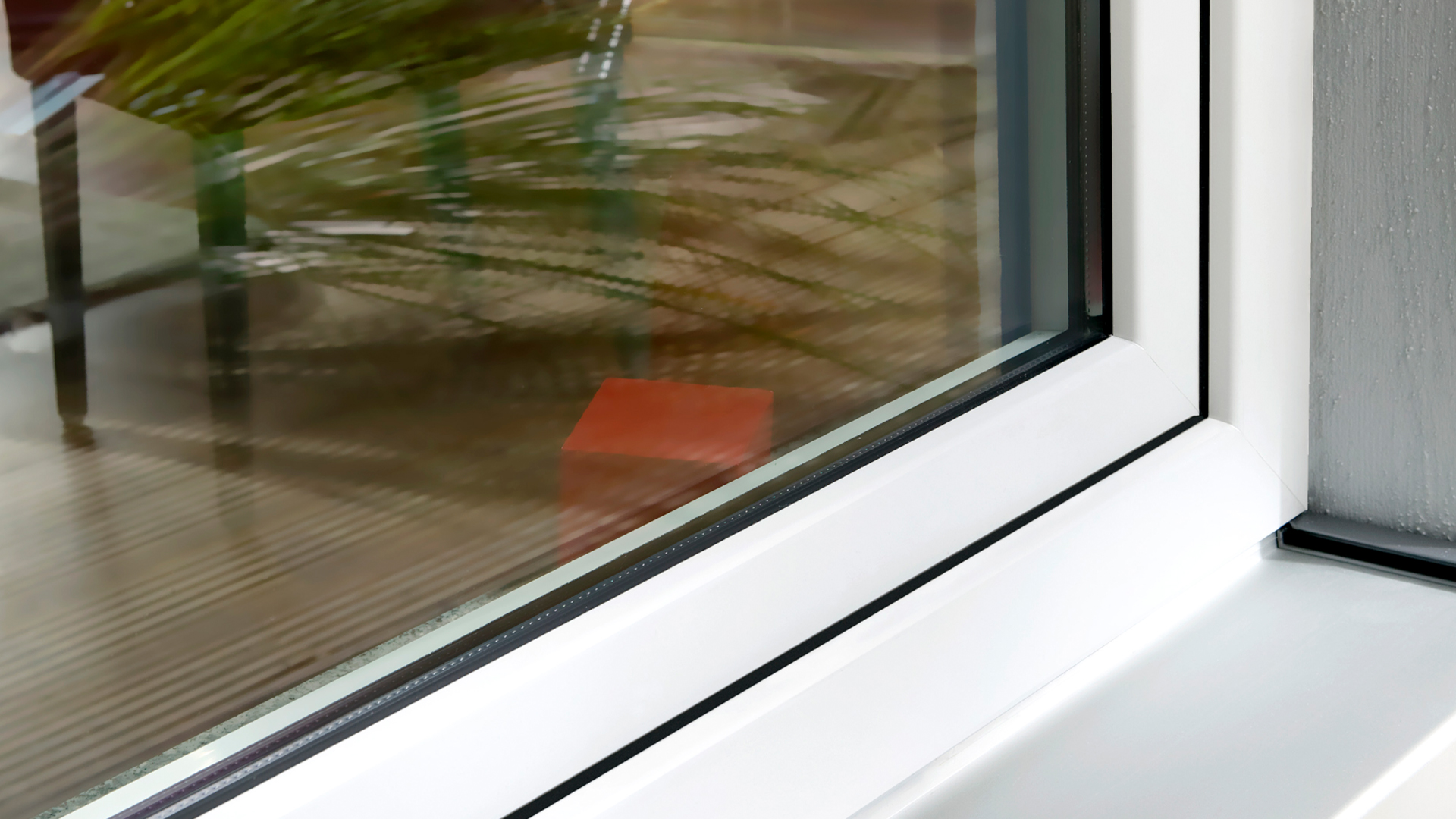

GEALAN S 8000

74 mm · 5–6 chambers · rebate seal

A 74 mm profile system with five- or six-chamber body variants and a rebate-seal design. Glazing and hardware configuration are verified separately against element dimensions and project requirements.

Build depth: 74 mm
Chambers: 5–6
Uf value: 1.2 W/m²K
Max. glass: 48 mm / 50 mm STV®
Application: Windows · entrance doors

Official GEALAN product page ↗

Sliding Systems

GEALAN

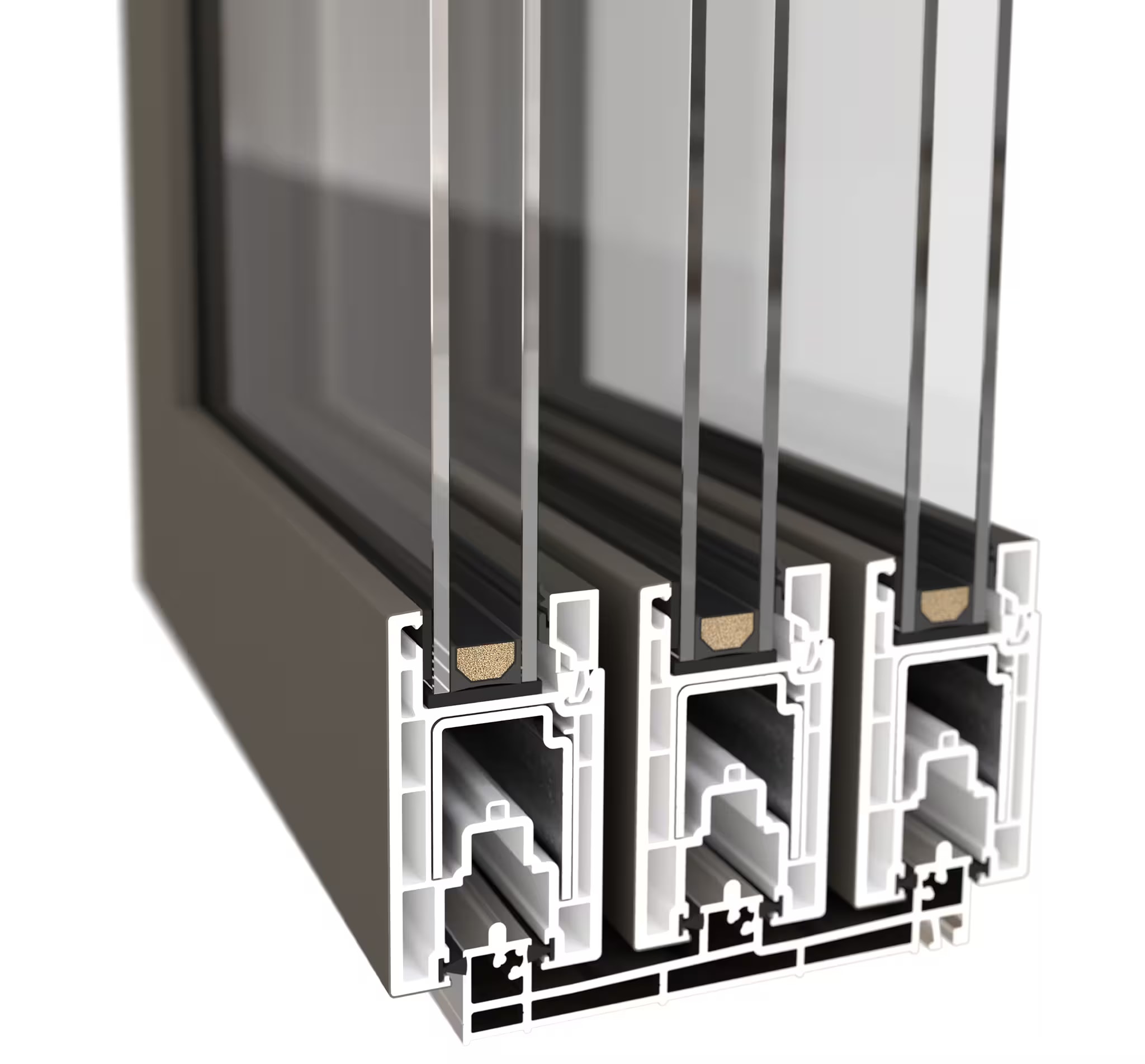

SMOOVE® multislide

74 mm

SMOOVE® multislide

GEALAN · SMOOVE® multislide

GEALAN-SMOOVE® multislide

74 mm · 2 or 3 tracks · threshold or full frame

A 74 mm system for sliding windows, balcony doors and terrace doors. It can be configured with two or three tracks, with a threshold or a full frame. Visible sash widths of 72 mm for windows and 86 mm for balcony doors support a high glass ratio; the Monostulp option reduces the labyrinth area to 47 mm. Threshold heights are 20 mm for two tracks and 27.5 mm for three.

Build depth: 74 mm
Track options: 2 / 3
Threshold height: 20 mm / 27.5 mm
Application: Sliding windows · balcony and terrace doors

Official GEALAN product page ↗

GEALAN

S 9000 HST

190 / 82.5 mm

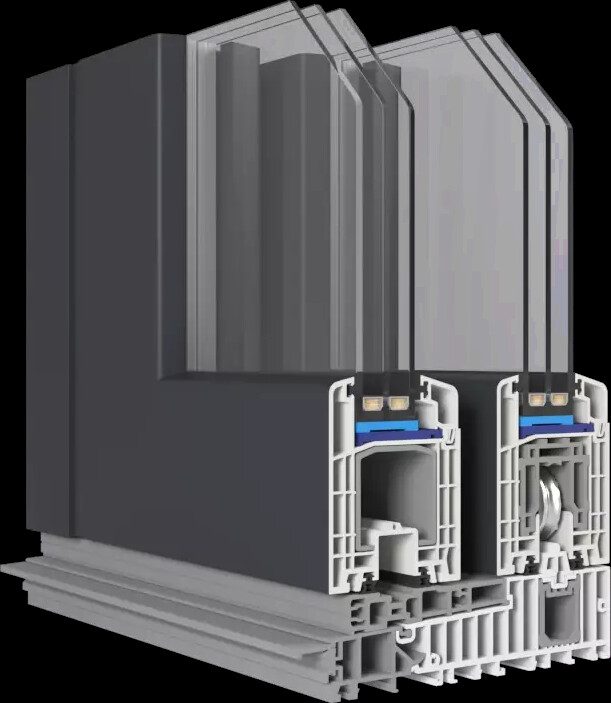

SECTION

S 9000 HST

GEALAN · S 9000 HST

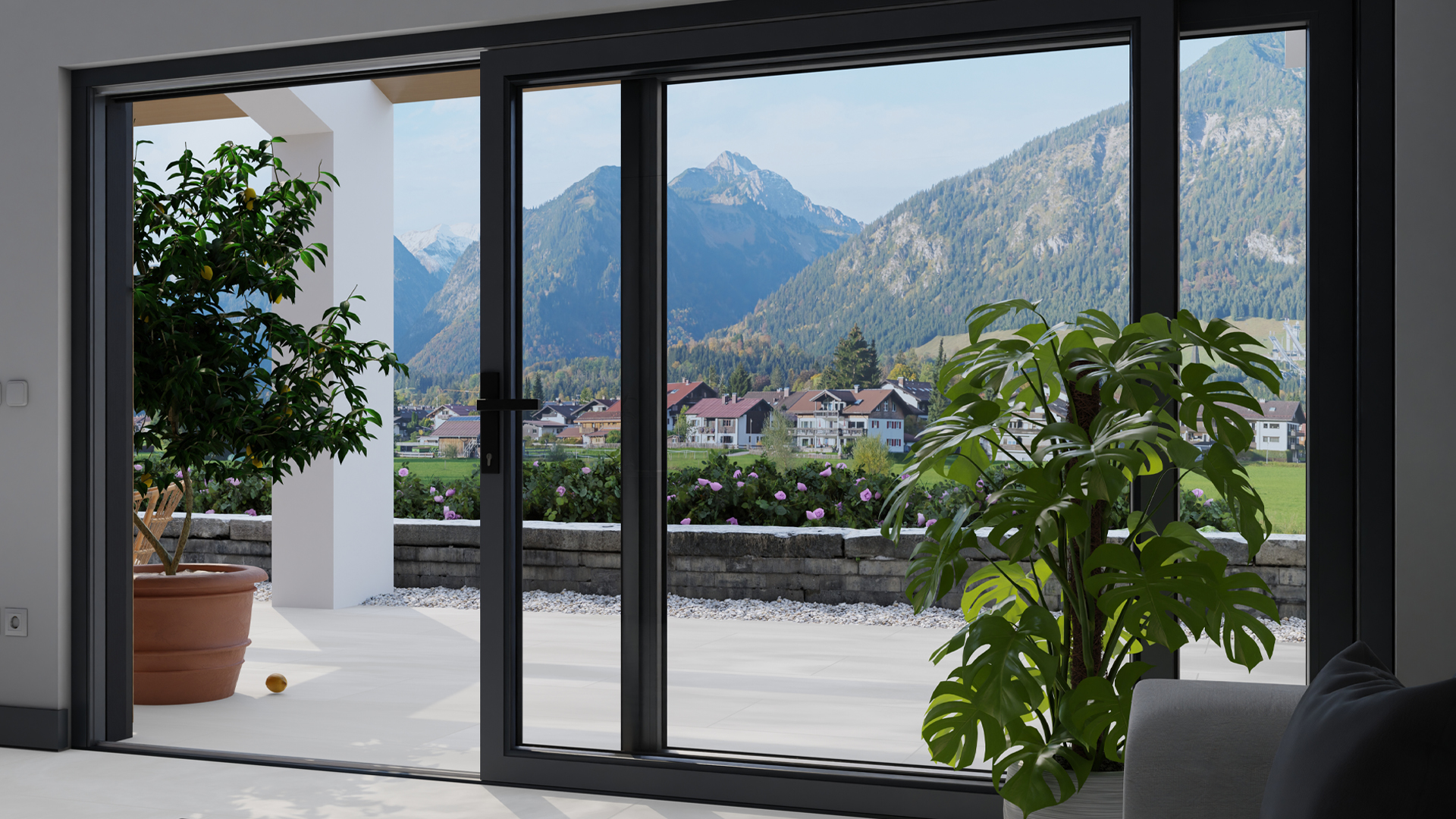

GEALAN S 9000 HST

lift-and-slide · large panes · low threshold

A lift-and-slide (HST) terrace door on the S 9000 platform. Catalogue references are a 190 mm frame and 82.5 mm sash depth, glazing up to 52 mm, or 54 mm using STV®, and a profile Uf value down to 1.3 W/m²K. For large openings, dimensions, sash weight, glazing, threshold and hardware are checked together for the project.

Build depth: 190 / 82.5 mm
Chambers: 5
Uf value: 1.3 W/m²K
Max. glass: 52 mm / 54 mm STV®
Application: Lift-and-slide · terrace

Brochure · EN (PDF)Official GEALAN product page ↗

Front Doors

GEALAN

S 9000 Haustür

82.5 mm

S 9000 Haustür

GEALAN · S 9000 Haustür

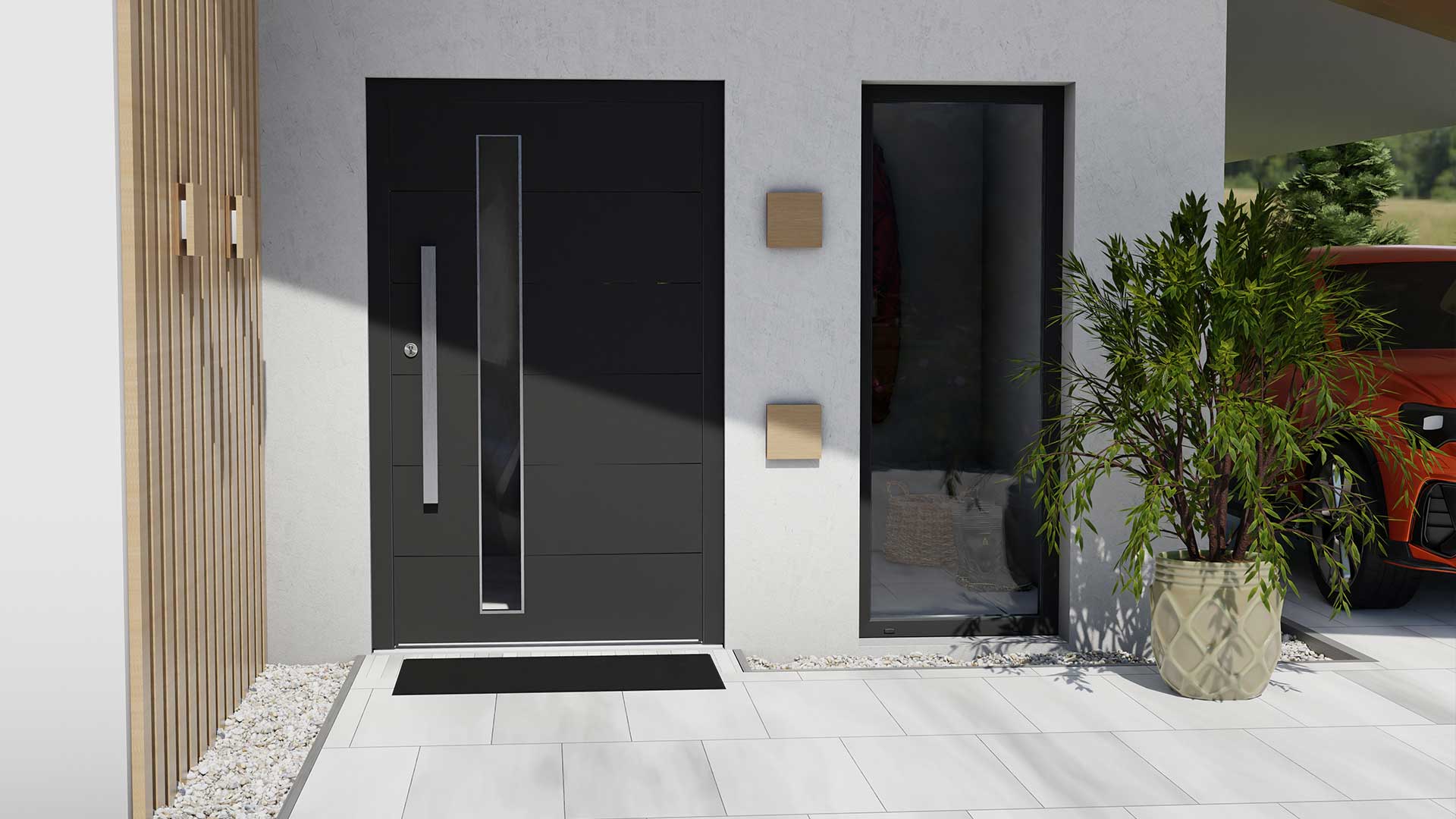

GEALAN Front Door (S 9000)

82.5 mm · 5 chambers · glass or panel

An 82.5 mm, 5-chamber entrance-door solution on the S 9000 platform. Catalogue glazing or panel thickness reaches 52 mm, or 54 mm with STV®. Colour, surface, lock, threshold and hardware are verified for the project against the required security and performance targets.

Build depth: 82.5 mm
Chambers: 5
Max. glass: 52 mm / 54 mm STV®
Application: Front door · security

Brochure · EN (PDF)Official GEALAN product page ↗

PREMIUM SURFACE TECHNOLOGY

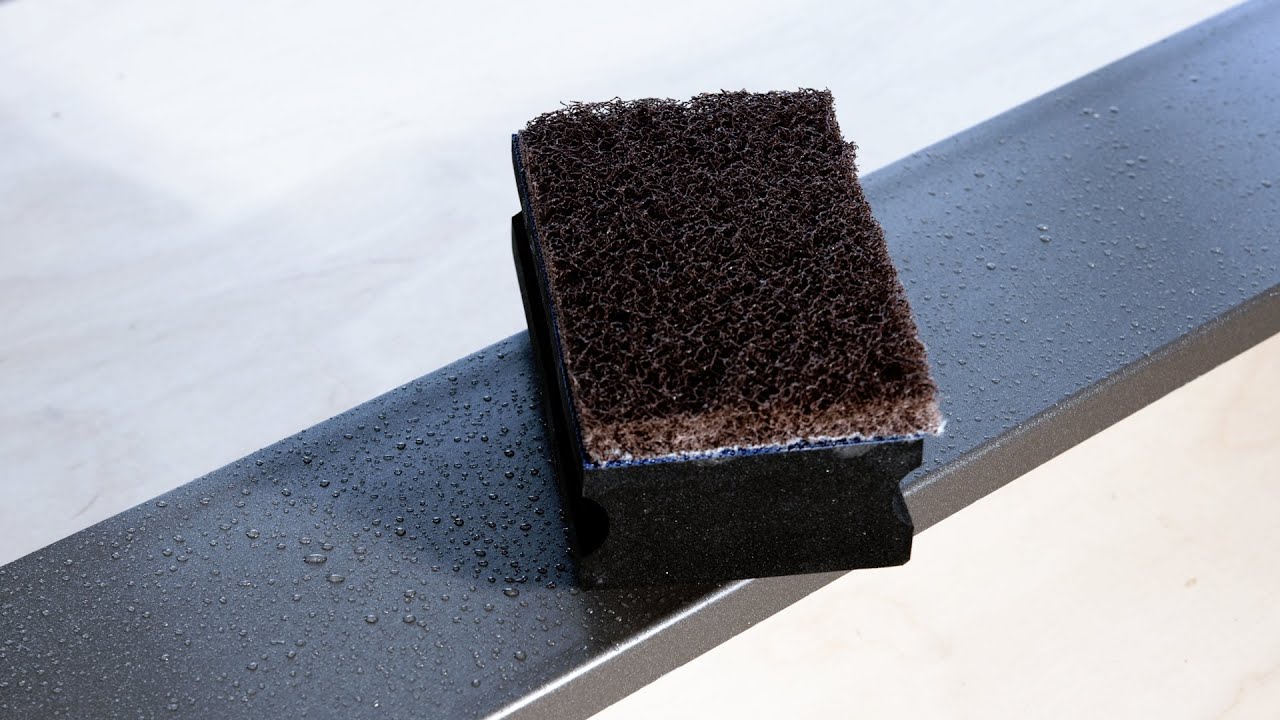

GEALAN-acrylcolor®

Colour becomes an integral part of the profile.

GEALAN-acrylcolor® bonds the white PVC base body with a PMMA (acrylic glass) surface during coextrusion. Instead of a subsequently applied paint or foil, the result is a durable, refined exterior finish.
